Features

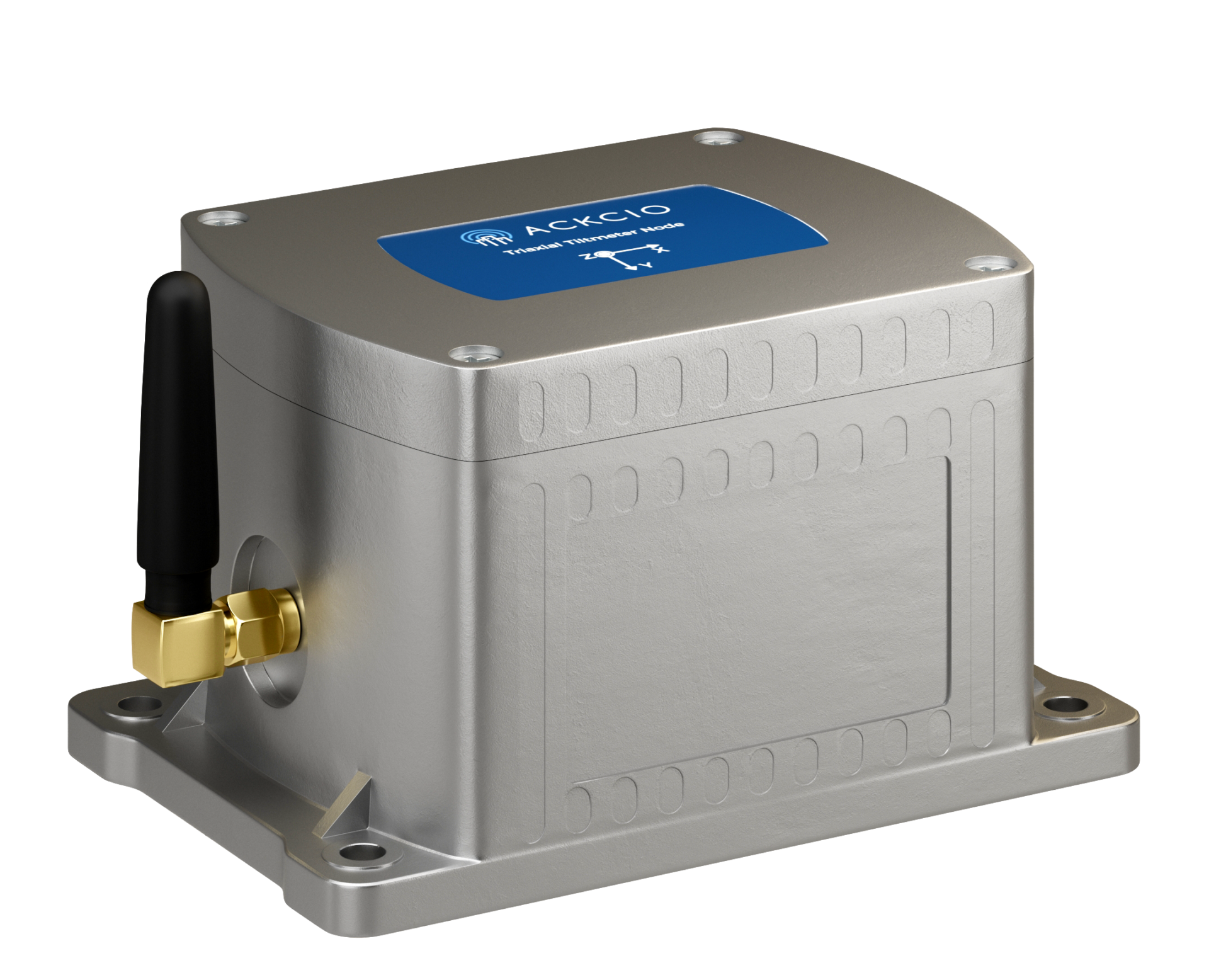

Wireless LoRa tiltmeter for geotechnical and structural monitoring.
Accurate tilt and acceleration readings, with dynamic monitoring capability.
Low-power design for long battery life with field-replaceable batteries.

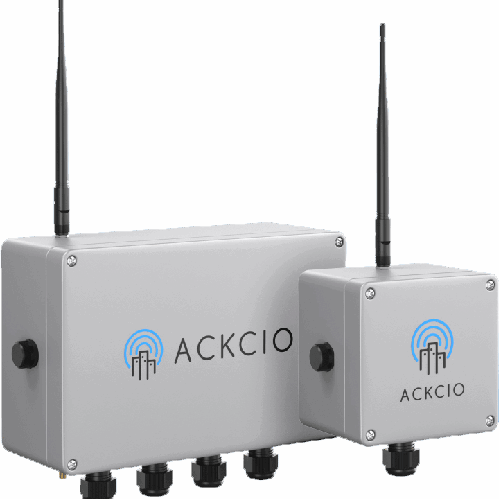

Seamless integration with Ackcio Gateway 3.7 (Mesh + LoRa).
LoRa long-range communication for flexible site coverage.
Visualised in Snape platform, subscription-free dashboards and alerts.
Environmental pressure readings can be captured with an Internal barometer for sensor reading compensation.
Optional brackets are provided to facilitate deployments in horizontal and vertical orientations and railway tracks.
| Sensor type | Tri-axial MEMS accelerometer |
| Operation modes | Dynamic tilt and vibration monitoring |
| Measurement range | ±15° |
| Resolution | <0.002° |
| Accuracy | ±0.1° within full range |
| Sampling rate | Configurable up to 100 Hz |
| Power source | 1 × 3.6 V D-size replaceable battery (2-Pin connector required) |
| Battery life | Up to 1-5 years (depending on sampling interval) |
| Data transmission | LoRa radio communications (ISM sub GHz) |
| Enclosure | IP67 rated, rugged for outdoor use |
Datasheets
BEAM-TM-L
Choose the right tiltmeter for your deployment
BEAM-TM vs BEAM-TM-L
Both sensors support reliable tilt monitoring, but they are designed for different deployment conditions. As Ackcio phases out the legacy BEAM-TM, the BEAM-TM-L is the recommended choice for new open-air and point-to-point deployments.
Recommended for new deployments: BEAM-TM-L
Its wider measurement range, triaxial sensing, event-triggered acquisition, LoRaWAN connectivity, and multi-year battery life make it the practical starting point for most new projects.
| Key difference | BEAM-TM Mesh tiltmeter · specialist fit | BEAM-TM-L LoRa tiltmeter · recommended for new projects |
|---|---|---|
| Best fit | Complex or obstructed sites where a self-healing mesh helps relay data across the deployment. | Open-air, point-to-point deployments with clear line of sight to a gateway. |
| Wireless architecture | Ackcio Mesh with up to 50 nodes and up to 12 hops. | LoRaWAN single-hop connectivity; integrates with LoRaWAN networks and third-party servers. |
| Measurement range | ±15° | ±90° |
| Resolution | 0.0001° | 0.001° |
| Axes and acceleration | Biaxial tilt measurement; no acceleration sensing. | Triaxial tilt measurement plus ±2g acceleration sensing. |
| Real-time event alerts | Scheduled transmission only. | Tilt and acceleration triggers can wake the device, record an event, and report it immediately. |
| Battery life | Approximately 6–18 months, depending on sampling interval and deployment conditions. | Multi-year battery life; the current datasheet estimates more than two years in dynamic alarm mode and up to five years in normal scheduled operation, depending on interval and conditions. |
| Operating temperature | −40°C to +80°C | −20°C to +70°C |
| Primary trade-off | Choose for mesh resilience and complex, obstructed environments. | Choose for broader tilt coverage, event detection, and lower maintenance. Each node needs a clear path to the gateway. |
Why BEAM-TM-L is the direction for new projects
- Measures tilt across a full ±90° range.
- Adds acceleration sensing and trigger-based monitoring.
- Supports open LoRaWAN deployments.
- Reduces maintenance visits with multi-year battery estimates.
When BEAM-TM may still fit
Existing or highly obstructed deployments may still benefit from Ackcio Mesh, especially where nodes must relay data through one another or where clear line of sight to a gateway is difficult.
Not sure which tiltmeter fits your site conditions?
Talk to our team
