Analogue Nodes

Ackcio Analogue Nodes read compatible instruments with voltage, current-loop or Wheatstone bridge outputs. Choose a Node based on the instrument’s output and channel requirements.

BEAM-AN-S1: Supports 1 sensor (2 analogue channels and 1 thermistor channel)

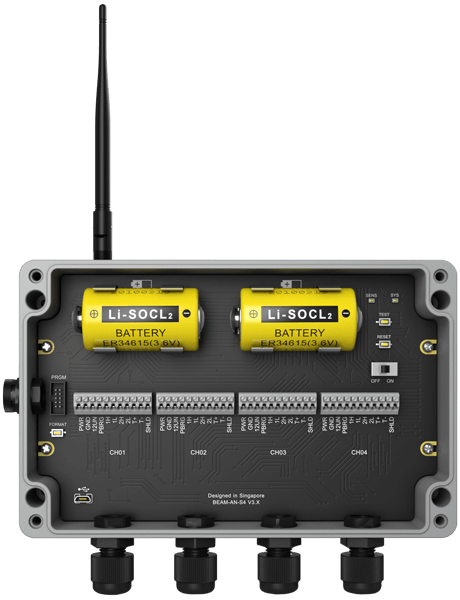

BEAM-AN-S4: Supports 4 sensors (8 analogue channels and 4 thermistor channels)

Features

Compatible with most types of analogue sensors.
Provides noise-free, accurate, repeatable, and reliable sensor readings.
In-built memory that stores over 65,000 readings with time.
Uses Ackcio Mesh, a long-range mesh network, to send sensor data to the Gateway.
IP67-rated cast-aluminium enclosure that is ideal for deployments in harsh environments.
Low-power, long battery life.
Internal barometer to obtain environmental pressure readings for sensor reading compensation.
Option to be configured as standalone data loggers and deployed independently.

Sensor compatibility

Mems Tiltmeters
MEMS tiltmeters
Ldvt Sensors
LVDT sensors
Crack Meters
Crack meters
Pressure Cells
Pressure cells
Multipoint Extensometer
Multi-point borehole extensometers

Datasheets

An S1 Internal 1 Transparent Upd
BEAM-AN-S1
An S4 Internal 1 Transparent Upd
BEAM-AN-S4
Bottom Img
