Ackcio Beam
Our flagship product suite is Ackcio Beam, a wireless data acquisition system. It allows you to safely monitor industrial sensors wirelessly and reliably in mission-critical industries in both aboveground and underground environments.
Local data acquisition and management do not require a cloud service. Remote access and data transfer to external platforms depend on the configured network connection.

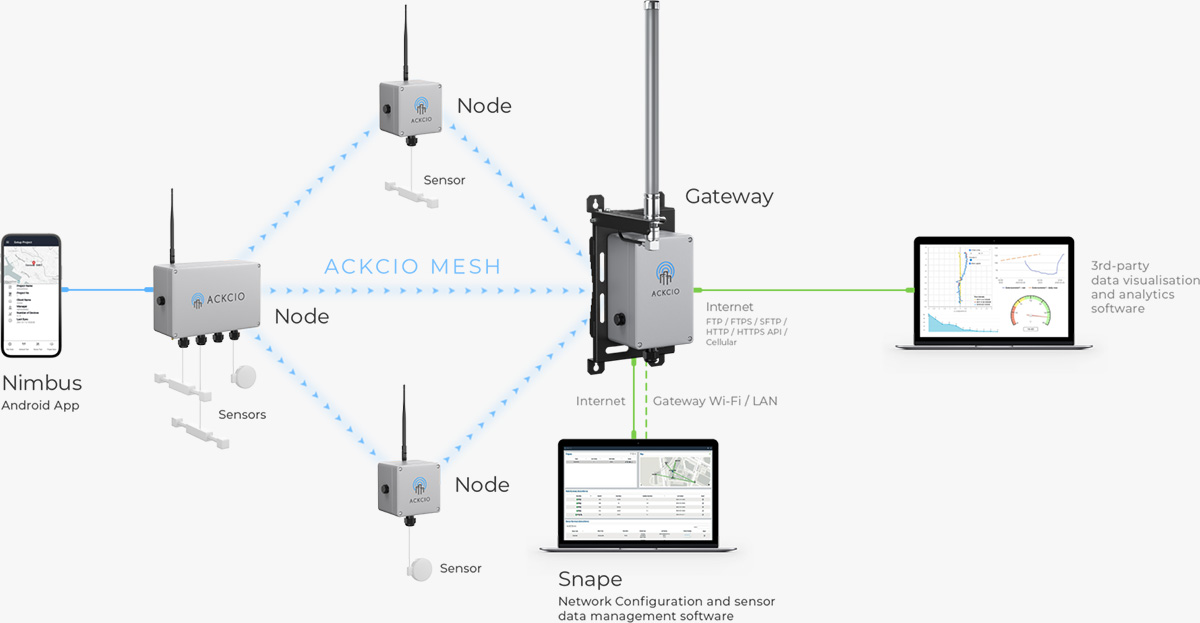

How it Works
Compatible Ackcio Nodes read connected instruments at configured intervals and send the readings through Ackcio Mesh to the Gateway. The BEAM-TM-L wireless tiltmeter uses a direct LoRaWAN link to a compatible Gateway. You can manage readings locally in Snape or configure the Gateway to send data to your own or a supported third-party platform.

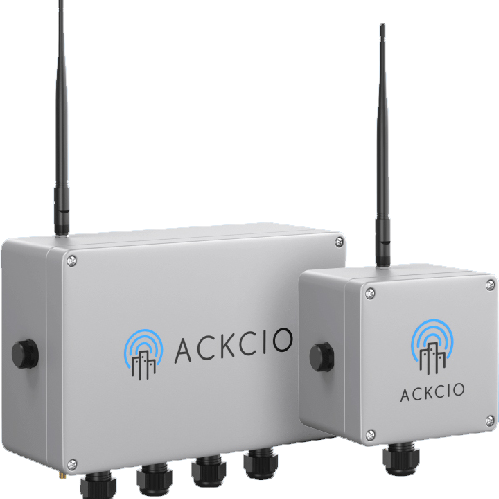

Ackcio Nodes
Sensors are plugged into Nodes. Nodes run on batteries and can be placed wherever the sensors are located – both aboveground and underground.
Ackcio Gateways
Ackcio Gateways receive periodic sensor data from the Nodes and upload the data to 3rd-party software platforms or your own software platform via API or FTP push.
Ackcio Mesh
Ackcio Mesh is our patented long-range mesh communication protocol that is used by the Nodes and Gateways to exchange sensor data and configuration messages between them.
Ackcio Software
The Ackcio Beam system comes with two software solutions: Snape and Nimbus. Snape is our web-based network configuration and data management software that runs on our Gateways. Nimbus is our Android mobile app that can be used to configure Nodes on project sites.
Ackcio Sensors
Ackcio’s sensor portfolio includes tiltmeters, GeoArray displacement arrays and vibrating wire instruments. Vibrating wire instruments and GeoArray connect to compatible Ackcio Nodes, which transmit readings through Ackcio Mesh. BEAM-TM-L communicates through LoRaWAN. Snape runs on the Ackcio Gateway for local data and device management, with configurable connections to external software.
Why use Ackcio Beam?
The Ackcio Beam system has many unique features that make it ideal for your industrial monitoring applications.
01
Monitor sensors underground
Thanks to the innovative long-range Ackcio Mesh wireless communication protocol, Ackcio Beam can be deployed in underground tunnels, mines, galleries, etc. for monitoring sensors safely and cost effectively.
02
Compatible with a wide variety of sensors
Our Nodes support the widest range of industrial sensors used in industries like construction, mining, infrastructure, and rail.
03
Re-transmission of failed sensor data
Ackcio Mesh Nodes with onboard memory can store readings during a communication interruption and retransmit them when the connection is restored. BEAM-TM-L uses LoRaWAN and does not store missed readings for retransmission.
04
On-demand Gateway-to-Nodes communication
Our Gateways can speak with their Nodes at any point in time. So things like updating sampling intervals can be done instantaneously rather than waiting for the next sampling interval.
05
Superior reliability in data acquisition for regulatory compliance
Our Ackcio Mesh network automatically selects the best communication paths in the network and frequencies with less interference for data transmission. This enables highly reliable data acquisition in all types of monitoring applications with stringent data reliability regulatory requirements.
Sensor Compatibility
Ackcio Beam solution is compatible with most analogue (voltage, current-loop, Wheatstone Bridge), vibrating wire, pulse counting, and digital (RS485, RS232, and SDI-12) sensors.
Testimonials
Paul Thurlow
Vice President, Western Region
at GEO-Instruments
The ability to read longer instruments and the networking ability the system offered in a challenging location was a key factor on this project.
Antonis Charalampidis
Geotechnical Specialist
at SMT Nordic ApS
Ackcio provides robust wireless data acquisition solutions in areas where several instruments are concentrated in a relatively wide area.
Benedikt Bruns
Managing Partner
at GEO-Inspector
We were looking for a better solution. And that’s how we came to Ackcio, to bring these different sensors to one system.
